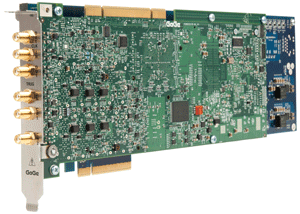

GaGe Cobra Express with eXpert Ultrasonic NDT Position Encoder Firmware
Company:
Vitrek - GaGe Brand High-Speed Data Acquisition
Address1:
12169 Kirkham Road
City:
Poway
State:
CA
Country:
USA
Phone:
815-838-0005
Fax:
815-838-4424
Email:
sales@gage-applied.com
eXpert FPGA DSP: Ultrasonic NDT Position Encoder
Most ultrasonic nondestructive inspection systems are equipped with one or more position encoders, which accurately measure the position or angle of a scanning ultrasonic transducer or sample. Although position encoders may operate with general purpose digitizers in ultrasonic inspection systems, digitizers equipped with encoder reading capability allow for the fastest possible scan rates. Specifically, digitizers that can read encoders are able to overcome slow native encoder software interfaces and mitigate non-deterministic behavior in the Windows environment. GaGe CompuScope digitizers that are equipped with position encoder reading capability addresses these modern ultrasonic inspection systems.
eXpert FPGA DSP Features
- Compatible with Step & Direction Encoders and Quadrature Encoders
- Compatible with Multiple Manufacturer Position Encoders
- Provides 2 Independent Set of Differential Position Encoder Inputs
- Encoder Inputs are High Z, Support TTL-Type Logic Levels, and Capable of Counting Encoder Signal Frequencies up to 1 MHz
- 2 Operating Modes: Pulse On Position and Position Stamping
- Transparent to GaGe's Standard CompuScope Digitizer Drivers for Windows/Linux, so that no Special Software is Required
- Requires GaGe Software Development Kit (SDK) for C/C# that Provides Ready-Made Compiled Sample Programs
|
